ORIGINAL RECIPROCATING FILING MACHINE & ROTARY HANDPIECE

The original Diprofil Reciprocating Filing Machine and Diprofil Rotary Handpiece for efficient polishing and finishing operations. The Diprofil Machines, with a wide range of tools and accessories, have been developed by careful studies of fine mechinal handwork and finishing operations. They facilitate filing, lapping, honing, polishing etc. and have become an important concept in the daily work of mouldmaking, die-sinking, toolmaking and other fine mechanical precision work.

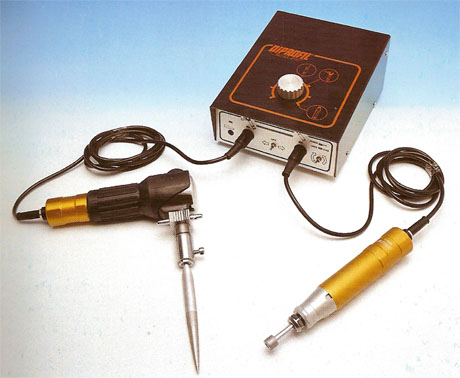

 The original Filing Machine with micromotor.
The machines can be supplied with two different tool holders: standard 3,5 mm (FPP) or heavy duty 6,5 mm (FPM).

For better comfort, each model is available with an ergonomic rubber sleeve (R), The original Diprofil Filing Machine is also available for fiexible shaft drive or with integrated air motor.

If required, all models have the possibility of air cooling through a thin air tube, connected to a  nipple on machine housing.

 Technical data

Tool holder : max. 3,5 (FPP)
                  or 6,5 mm (FPM)
Stroke length : 0 - 6 mm
Speed :         max. 1.000 - 9.000 rpm
Wight :         0,8kg
Noise :         <70 dB(A) at 7.000 rpm
Vibrations : FPP with standard tool holders    (3,5 mm) 4 - 5 m/s? FPM with heavy duty tool holders (3,5 mm) Freqency weighed hand/arm vibration, principally in accordance with ISO 8662-1 and ISO 8662-12.
For further details, see diagram and other information in the corresponding Operation Guide.


 The micromotor-driven Diprofil Rotary Handpiece, HPN,
is suitable for a wide variety of applications, especially for high torque work.

The Diprofil Handpiece is also available with integrated air motor (HPL)

 Tecnical data: HPN

Collets :  3,0 - 3,5 mm and 5,5 - 6,5 mm
Speed : approx. 3.000 - 22.000 rpm
Power : max. 70W at 13.000 rpm
Torque : max. 9,5 Ncm
Wight : 0,4 kg
Noise : <70 dB(A) at 20.000 rpm
Vibrations : <2,5 m/s?  Frequency weighed hand/arm vibration, principally in accordance with ISO 8662-1
Measuring point : Machine housing.
Tool : Diamond pin.


 The Diprofil Power Unit (DPU) is designed to give maximum performance to the Diprofil micromotor machines. An electronic feedback system compensates for speed drop when loaded. The Diprofil Power Unit is also adaptable to other micromotors.



Tecnical data : DPU

Input : 110- 127/220 - 240 VAC 50/60 HZ
Output : 5-40 VDC max. 4 A
Fuses : 110 - 127 V - 2 A 220 - 240 V - 1 A
Weight : 2 kg

  Diprofil Foot Switch (DPU-C) is connected to DPU for convenient start/stop funtion.

ORDER INFORMATION

All Diprofil machines are delivered in a strong plastic case including the necessary accessories.

To the Filing Machine a FNA-31 and a machine kit are include.

To the Handpiece an extra collet is included.

To order a product with the ergonomic rubber cover, please, add/R to the catalogue number, e.g. FPP/R.
     Cat. No. Machine Tool holder
  FPP Diprofil Filing Machine 3,5 mm
  FPM Diprofil Filing Machine 6,5 mm
  HPN Diprofil Rotary Handpiece 3,5 - 3,5 mm and 5,5 - 6,5 mm
  DPU Diprofil Power Unit
  DPU-C Diprofil Foot Switch
